LED STRIP PERFORMANCE COB -1000 -10
8993481
597556
LSPFM-1000/COB/965/5
auf Anfrage
je 1
keine Verfügbarkeitsinformationen
Verpackungseinheiten
| 1 |
Funktionen
Verkaufsdaten
| Mindestbestellmenge | 1 |
| Bestellschritt | 1 |
Beschreibung

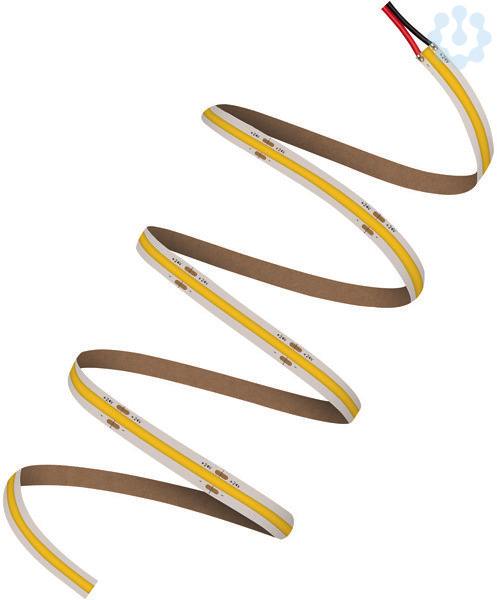

High performance COB LED strip with 1000 lm/m for high requirements. Product features: Flexible and cuttable LED strip. Luminous flux: 1000 lm/m. Very good color rendering index Ra: > 90. Smallest cuttable unit: 62.5 mm. Large range of color temperatures: from warm white to cool daylight. Dimmable with suitable drivers, see also www.ledvance.com/dim . Product benefits: Excellent homogenous light, without visible light points thanks to COB technology. Great design freedom thanks to flexibility and cuttability of module. Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back. Simple connection thanks to integrated cables on both sides. Maximum flexibility due to large range of accessories. Easy installation, no tools required for connection. Areas of application: General illumination. Cove lighting. Bars, restaurants, hotels. Offices. Residential interiors. Equipment / Accessories: Connectors, profiles and covers for several mounting options available
Merkmale
| EAN | 4058075597556 |
| Marke | LEDVANCE GmbH |
| EGRA | 8993481 |
| Lieferantenartikelnummer | 597556 |
| Herstellerartikelnummer | LSPFM-1000/COB/965/5FS1LEDV |
| UNSPSC V6.0801 | 39111509 |
| VEG2 | 3.2 |
| eClass 5.0 | 27110401 |
| UNSPSC V24 | 39111509 |
| ESN 3.3 | MON |
| eClass 6.0 | 27110401 |
| eClass 7.0 | 27110333 |
| Statistiken | G0189 |
| GdB | 009008001 |
| eClass 4.0 | 27110401 |
| eClass 10.1 | 27110333 |
| eClass 8.0 | 27110333 |
| VEG | 3 |
| UNSPSC | 32111503 |
| VEG3 | 3.4 |
| ETIM 7.0 | EC002706 |
| Farbtemperatur | 6500...6500 |
| Lampenleistung je Meter | 11 |
| Lichtstrom je Meter | 1060 |
| Max. Systemleistung | 38 |
| Anzahl der Leuchtmittel pro Meter | 384 |
| Ausstrahlungswinkel | 140 |
| Breite | 8 |
| Lampenspannung | 24...24 |
| Länge | 500 |
| Länge der einzelnen Abschnitte | 62.5 |
| Mit Anschlussset | Nein |
| Mit Endstück | Nein |
| Mit Schutzabdeckung | Nein |
| Schutzart (IP) | IP00 |
| Selbstklebend | Ja |
| Spannungsart | DC |
| Anschlussart | Steckklemme |
| Art der Verdrahtung | mit Durchgangsverdrahtung |
| Bemessungslebensdauer L70/B50 bei 25 °C | 50000 |
| Farbwiedergabeindex CRI | 90-100 |
| Kleinster Biegeradius | 10 |
| Polzahl | 2 |
| Zolltarifnummer | 94054231 |
